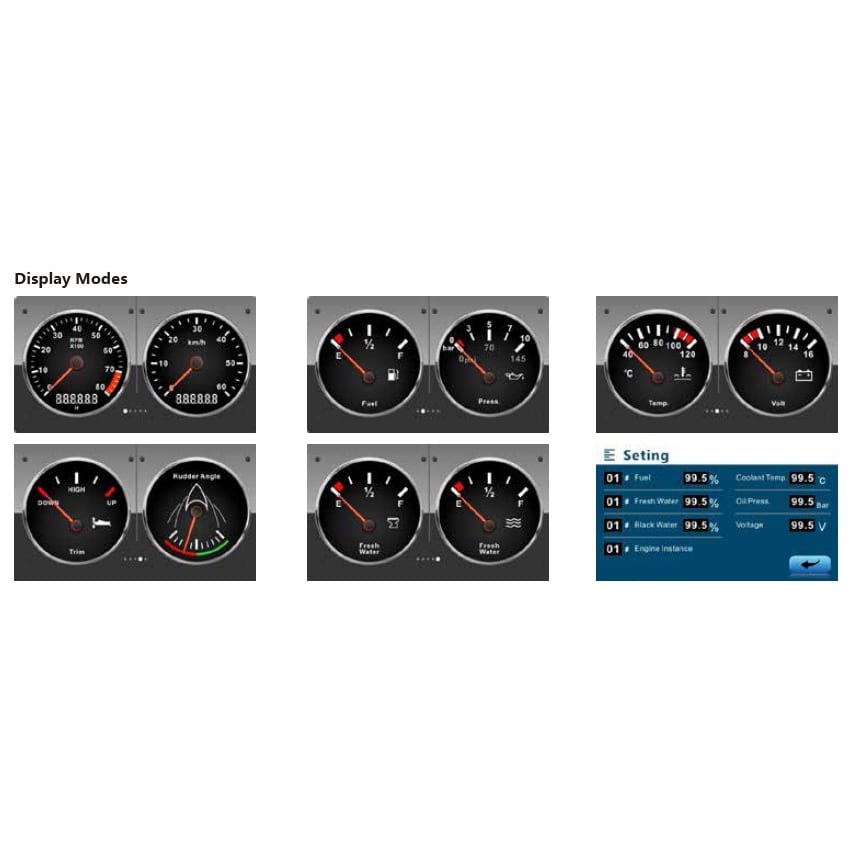

The KMB-43 Series is an Integrated Data Monitor with an advanced TFT (Thin Film Transistor) screen. The KMB-43 displays real time network information including engine output, fluid levels, and speed. KUS can also customize the unit to meet customer requirements. The unit is compatible with J1939 and NMEA 2000 systems. The KMB-43 is a perfect fit for marine applications that monitor information over the J1939 or NMEA 2000 network.

View Distributor List


Monitoring Data

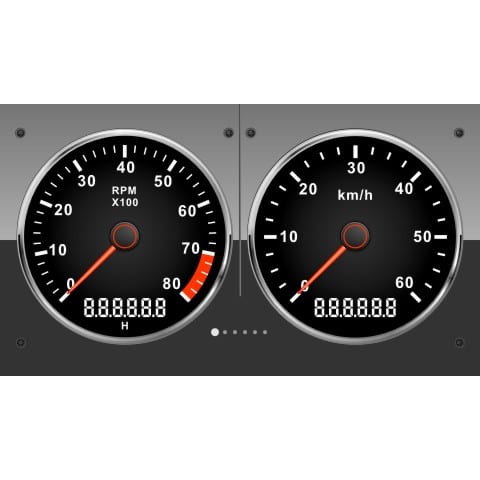

  • Engine: speed, balance, cooling water temperature, oil pressure, engine operating time
  • Nautical: course to earth, speed to earth

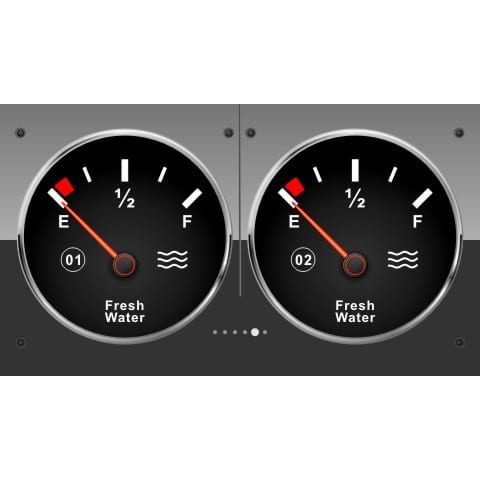

  • Liquid level management: oil level, water level, sewage level
  • Rudder angle position and battery voltage

Key Features

  • Single and double engine adjustable; Customizable number of boxes
  • Simple operation, support English and Chinese language switch
  • Compatible with NMEA2000, J1939, analog signals
  • Customized alarm values for safe driving
  • IP67 rated waterproof
  • 2-channel frequency, 10-channel resistance (0~999ohm)
  • Black and white background color selectable; night cruise mode
  • Backlight adjustment 10%~100%

Product Specifications

  • Model: KMB-43
  • Art No.: JKE00333
  • Dimension: 4.3 inches
  • Resolution: 480×272 pixels
  • Operation Voltage: 9-32V DC
  • Operation Current: <300mA (12V)
  • Operation Temp.: -20℃~+70℃/-4℉~158℉(Touch screen: -20℃~+60℃/-4℉~140℉)
  • Cable Accessories: 1m length cable included
