KMG-30T

KMG-30T is a multi-functional digital instrument that displays functions including oil level, tachometer, speedometer, oil and water level temperature in one device.

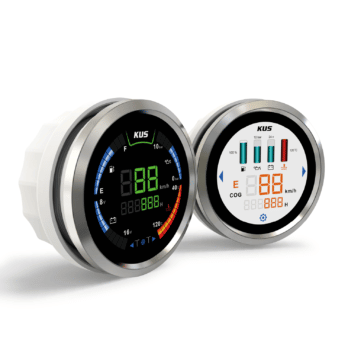

KMG-30T is a NMEA 2000 compatible multi-functional digital instrument. It comes in a stainless-steel cover with a black dial and touch screen. The connection, data and instances can be set to CAN Bus or analog signal output. The Unit is compatible with NMEA 2000 network and analog signal.


SKU JKE00482 Category Tags , , , ,


Share

Product Features:

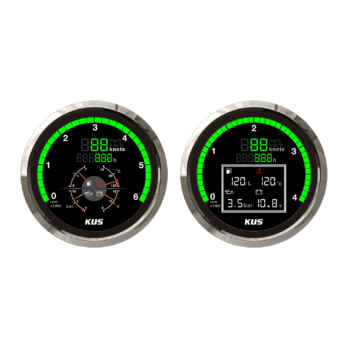

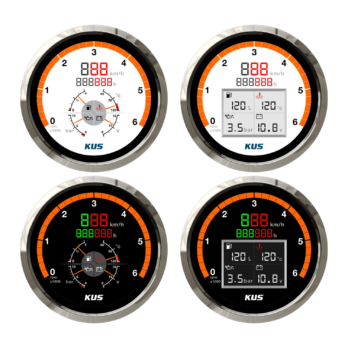

  • Two display options:
    • Model 1: Speed, COG, Voltage, Fuel Level, Engine Temperature, Oil Pressure, Engine Hours
    • Model 2: RPM, Voltage, Fuel Level, Engine Temperature, Oil Pressure, Engine Hours
  • Compatible with NMEA 2000 and supports 4 different analog signal inputs (Tachometer Sensor, Fuel, Water Temperature and Oil Pressure Sensor)
  • For NMEA 2000, the instance number needs to be set up on the KMG
  • For analog signal, optional scope can be set up by customer
    • Fuel Level (0 – 190ohm, 240 – 33ohm or customized)
    • Oil Pressure (10 – 185ohm or customized)
    • Water Temperature (301 – 23ohm or customized)
    • Speed Ratio: (0.5 – 250.0)
  • Alarm Functions: Fuel (10%), Water Temperature (95°C/203°F), Oil Pressure (0.7 Bar/10 psi), customizable
  • 10% – 100% backlight brightness
  • IP67 protection rating
Product Specifications:
  • Display Dimensions: Ø 76 mm / Ø 3 inches
  • Mounting Dimensions: Ø 97.5 mm / Ø 3.8 inches
  • Working Voltage: 9-32 VDC
  • Working Current: ≤170mA (12V)
  • Resolution: 432 x 432 pixels
  • Operation Method: Touch Screen
  • Working Temperature: -30°C to +85°C / -22°F to +185°F
  • Storage Temperature: -30°C to +85°C / -22°F to +185°F
  • Accessories: 1 M 5-core CAN cable, 1M 6 cores analog cable, instructions manual
