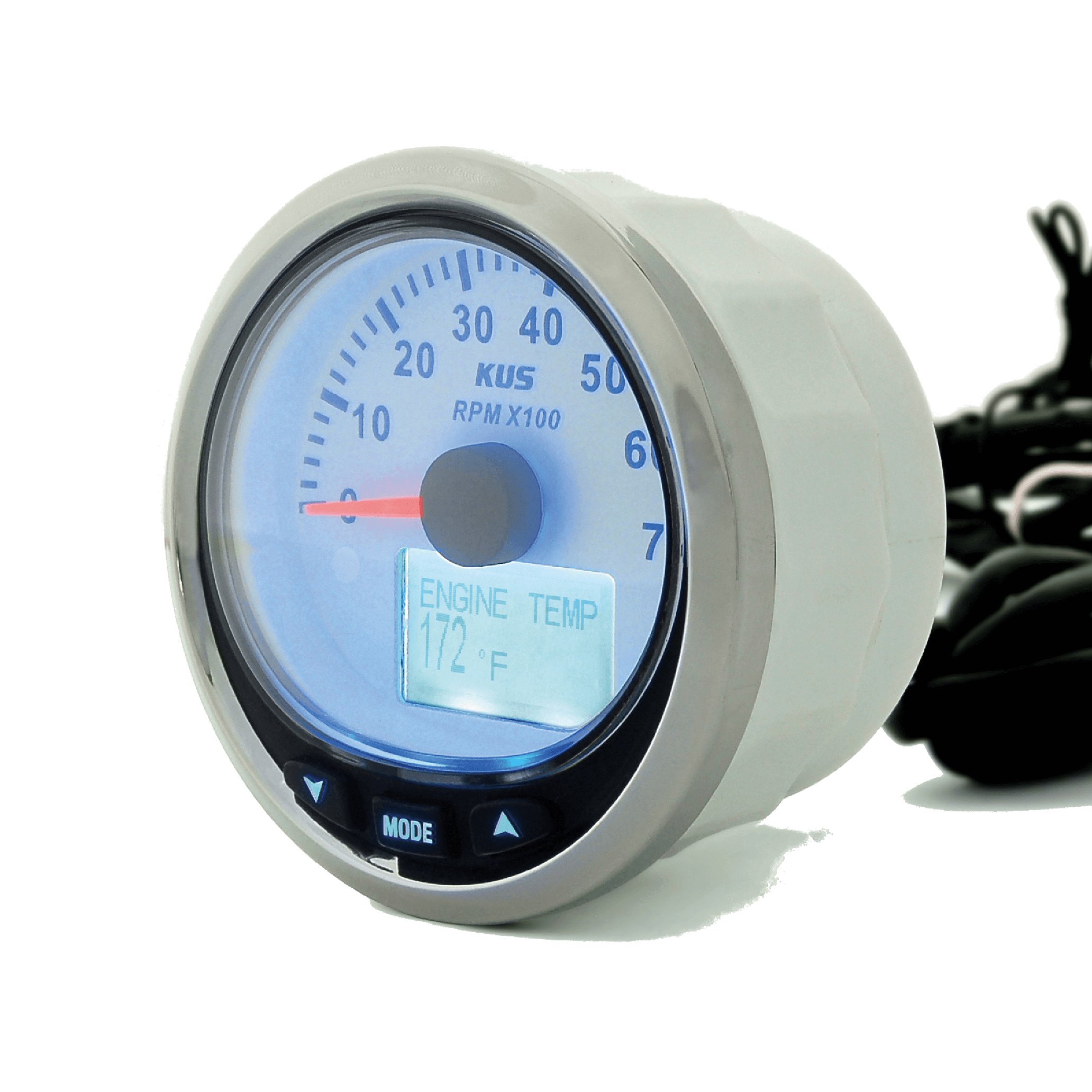

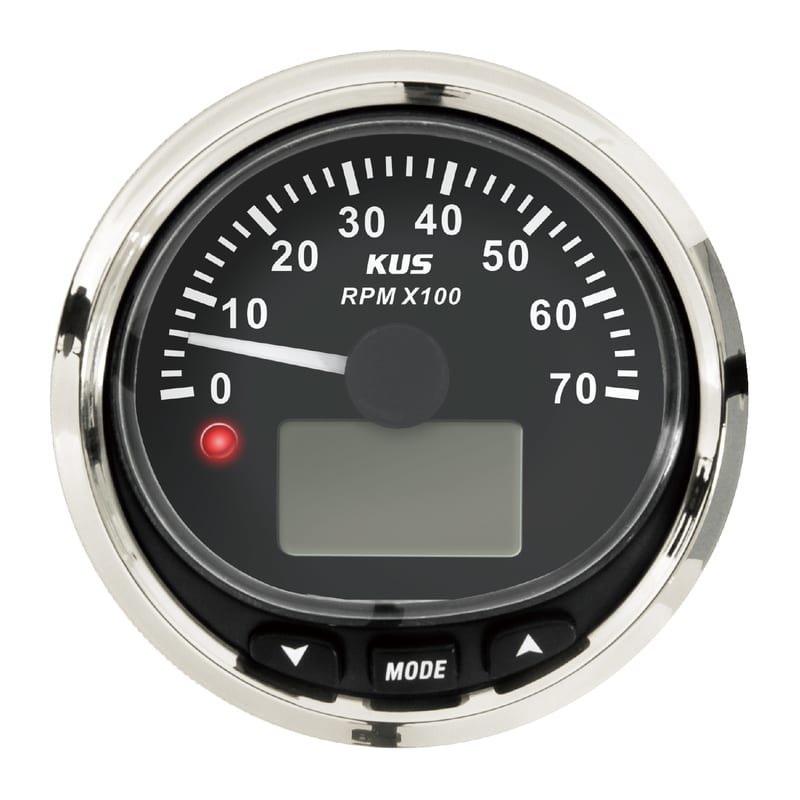

NMEA Tachometer Gauge – NMHB
The NMEA tachometer gauge allows the user to remotely monitor to monitor the gear speed of their engine. These tachometer gauges will work with NMEA 2000 senders or resistive type senders with an analog converter.
Share
Description
Bezel: SUS 316 Stainless Steel
Face Plate:
- Black
- White
Mounting Dimension: 85mm, 3 3/8″
Protection Rating: IP 67
Input Signal: NMEA 2000 & J1939
Indicating Range: 0 – 7000RPM
Operating Voltage: 12V/24V
Background Light: Red LED
Connector: Standard NMEA 2000 cable. 1 meter long
Movement: Cross coil motor movement
Product Data Sheet
NMEA Tachometer Gauge - NMHB | |
---|---|
Dimensions | 7 × 5 × 5 in |
Bezel | Black Plastic, Stainless Steel, White Plastic |
Face Plate | Black, White |
